PRODUCT FUNCTION
-
线路保护
支持过欠压、过载、过温、短路、漏电、缺相、不平衡等线路保护
-
负载识别
电力指纹提取，电动自行车违规充电识别
-
远程控制
支持远程控制分合闸，支持定时和策略控制
-
电能计量
双向电能计量精度1级，支持费控计量
performance parameter

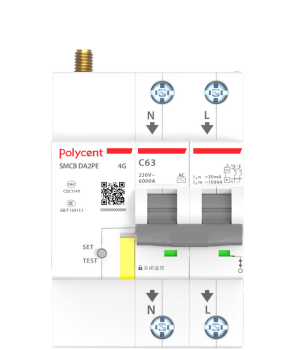

| Model | SMCB 1P 4G | SMCB 2P 4G | SMCB 2PE 4G |
| Function type | |||
| Type | Ordinary type | Ordinary type | Leakage monitoring type (E） |
| Built-in communication method | 4G | 4G | 4G |
| Support other built-in communication methods | WiFi、ETH（Ethernet） | WiFi、ETH（Ethernet） | WiFi、ETH（Ethernet） |
| Electrical characteristics | |||
| Rated current In | 6-100A | 6-100A | 6-100A |
| Rated working voltage Ue | AC 230V | AC 230V | AC 230V |
| Rated insulation voltage Ui | 500V | 500V | 500V |
Rated impulse withstand voltage Uimp | 4000V | 4000V | 4000V |
Rated short-circuit breaking capacity Icn | 6kA | 6kA | 6kA |
| Rated frequency | 50/60 | 50/60 | 50/60 |
Phase voltage operating rang | 85-265V | 85-265V | 85-265V |
| Tripping feature | Type C, Type D | Type C, Type D | Type C, Type D |
| Mechanical properties | |||
| Mechanical life | 10000次 | 10000次 | 10000次 |
| Electrical life | 10000次 | 10000次 | 10000次 |
| Mechanical life | 10000次 | 10000次 | 10000次 |
| Other features | |||
| Working environment temperature | -20℃~+80℃ | -20℃~+80℃ | -20℃~+80℃ |
| Working relative humidity | ≤95%(No condensation) | ≤95%(No condensation) | ≤95%(No condensation) |
| Main control power supply method | Take power from phase A | Take power from phase A | Take power from phase A |
| Wiring method | Single-phase single-wire(1P) | Single-phase two-wire(2P) | Single-phase two-wire(2P) |
| Wiring direction | Top in, bottom out | Top in, bottom out | Top in, bottom out |
| Installation method | Standard guide rail installation | Standard guide rail installation | Standard guide rail installation |
Expand to view more
Product advantages
-
-
应用广泛
体积小巧，适应各类安装环境
-
-
高精度等级
电能精度可达0.5级
-
-
高安全性
机械保护与电子保护双重保障
-
-
高度集成
保护，计量、控制、远程一体化
-
-
高寿命性
电气寿命达10000次以上
-
-
高灵活性
可实时调取采集数据
Application scenarios
-
Community
Monitoring of electric bike charging at homeElectrical fire hazard monitoringFire emergency intermodal monitoring -
School
Supervision of illegal electrical appliances in dormitoriesManagement of energy-saving electricity usage in public areasFire emergency protection in colleges and universities -
Commercial
Monitoring of safety hazards in commercial electricity usageRemote merchant electricity usage managementEnergy conservation in public areas of shopping malls -
Logistics
Energy conservation management for warehouse consumptionSafety charging monitoring for express delivery electric vehiclesCircuit aging safety warning -
Park
Energy conservation management in public areas of the parkEfficient and rapid power restoration and closingSafety monitoring of potential hazards -
Shop
Store electrical safety monitoringIdentification of high-power malignant loadsFire prevention and early warning management
